2019 Okuma Genos M560V #219532

Have one to sell?
978-884-1785
sales@bidspecialists.net
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
OKUMA
Model:
GENOS M560-V
Year:
2019
Status:
For Sale
Serial #:
219532
Country:
United States

Description

2019 Okuma Genos M560V #219532

Table Size: 51.18x22.05
X Travel 41.34
Y Travel 22.05
Z Travel 18.11

Rapid X rate: 1575 ipm
Y Rate: 1575 ipm
Z Rate: 1265 ipm
Max Table Load: 1980 lbs
Spindle motor: 30HP
Spindle taper: CT40
Tool Capacity: 32
High Pressure Coolant 1000 psi MP Systems
Approx shipping dimensions 122Lx99Wx108H

Equipped with

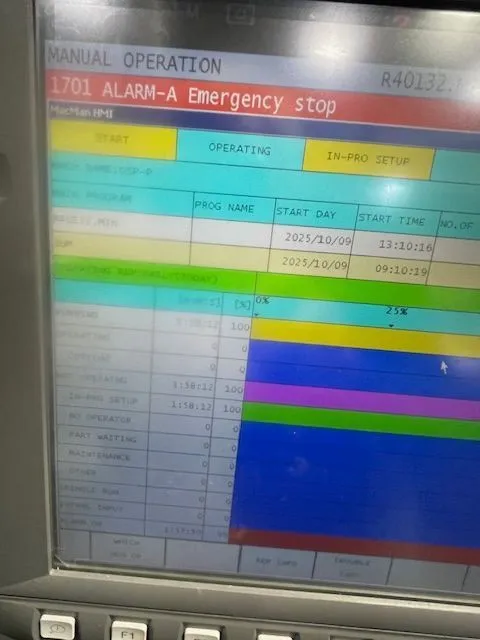

Control Okuma OSP-P300MA
Probe - both
Chip Conveyor
Mist Collector Mist Buster
Koma TWA 160
Full 5 Axis
New Spindle installed 10/9

X1,050 mm41.339"
Y560 mm22.047"
Z460 mm18.11"
Power30 hp22.4 kW
RPM15,000 RPM15,000 RPM
# ATC3232
Taper#40#40
Table-W560 mm22.047"
Table-L1,300 mm51.181"
# Axis33

2019 Okuma Genos M560V #219532

Table Size: 51.18x22.05
X Travel 41.34
Y Travel 22.05
Z Travel 18.11

Rapid X rate: 1575 ipm
Y Rate: 1575 ipm
Z Rate: 1265 ipm
Max Table Load: 1980 lbs
Spindle motor: 30HP
Spindle taper: CT40
Tool Capacity: 32
High Pressure Coolant 1000 psi MP Systems
Approx shipping dimensions 122Lx99Wx108H

Equipped with
Control Okuma OSP-P300MA
Probe - both
Chip Conveyor
Mist Collector Mist Buster
Koma TWA 160
Full 5 Axis
New Spindle installed 10/9
