2011 Haas VF3YT #1088833

Have one to sell?
978-884-1785
sales@bidspecialists.net
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-3YT
Year:
2011
Status:
For Sale
Serial #:
1088833
Country:
United States

Description

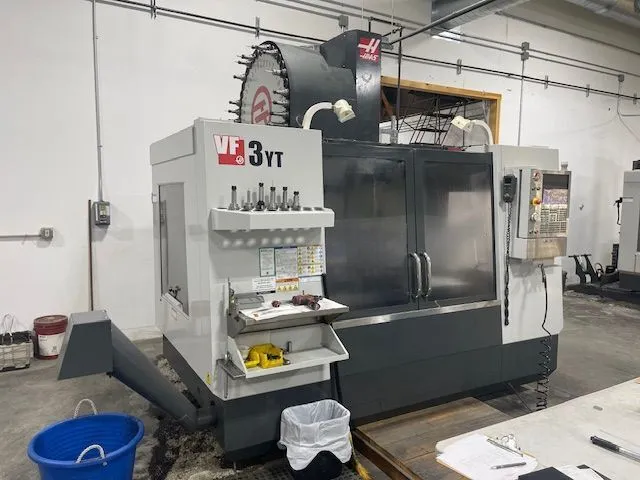

2011 Haas VF3YT #1088833

Table Size 54x24
X Travels 40"
Y Travels 26"
Z Travels 25"
Spindle nose to table 29.2" max
Spindle nose to table 4.2" min
Rapid X 710 ipm
Rapid Y 710 ipm
Rapid Z 710 ipm
Max Cutting 500 ipm
Max table load: 3500 lbs
spindle motor: 30 hp
Spindle Taper: CT40
Tool Capacity: 40
Approx shipping weight: 12500 lb
Approx shipping dimensions 149x100"

Equipped with
Probe - both tool and table
Auger

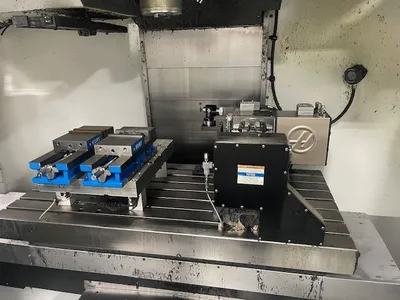

5 Axis table TR160Y
Full 5
Vises and Riser table shown in pictures are not included

X40"1,016 mm
Y26"660.4 mm
Z25"635 mm
Power30 hp22.4 kW
RPM8,100 RPM8,100 RPM
# ATC2020
TaperCT or BT 40CT or BT 40
Table-W25"635 mm
Table-L54"1,371.6 mm
# Axis33

2011 Haas VF3YT #1088833

Table Size 54x24
X Travels 40"
Y Travels 26"
Z Travels 25"
Spindle nose to table 29.2" max
Spindle nose to table 4.2" min
Rapid X 710 ipm
Rapid Y 710 ipm
Rapid Z 710 ipm
Max Cutting 500 ipm
Max table load: 3500 lbs
spindle motor: 30 hp
Spindle Taper: CT40
Tool Capacity: 40
Approx shipping weight: 12500 lb
Approx shipping dimensions 149x100"

Equipped with
Probe - both tool and table
Auger
5 Axis table TR160Y
Full 5
Vises and Riser table shown in pictures are not included
