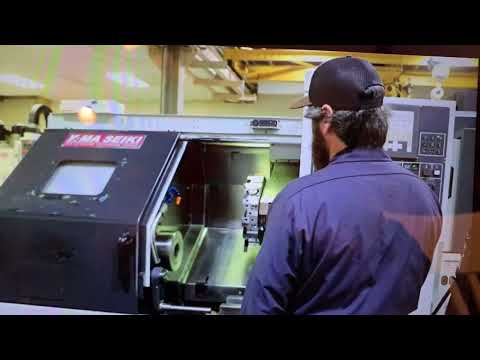

2011 Yama Seiki GA-2000 CNC TURNING CENTER

Description

Yama Seiki GA-2000 CNC TURNING CENTER
NEW: 2011

SPECIFICATIONS:
SWING OVER BED .............. 22.83"
SWING OVER SADDLE ........... 15.75"
MAX. TURNING DIA. ........... 13.78"
MAX. TURNING LENGTH ......... 23.6"
MAX. WORKPIECE WEIGHT ....... 517.6 lbs. w/TAILSTOCK
TURRET HEAD TYPE ............ DRUM
NO. OF TOOL STATIONS ........ 12
TOOL SIZE, SQUARE ........... 1"
TOOL SIZE, ROUND ............ 1.5"
SPINDLE SPEED ............... 4800 RPM
SPINDLE DRIVE MOTOR ......... 20/15 HP
BAR CAPACITY ................ 2.0"
SPINDLE NOSE ................ A2-6
X-AXIS TRAVEL ............... 8.07"
Z-AXIS TRAVEL ............... 24.4"
TAILSTOCK QUILL CENTER ...... MT#4
TAILSTOCK QUILL STROKE ...... 5.91"
TAILSTOCK QUILL DIA. ........ 2.76"
APPROX. MACHINE WEIGHT ...... 8,900 lbs.

EQUIPPED WITH:
FANUC 0iTD CNC CONTROL
8" 3-JAW HYDRAULIC CHUCK
TAILSTOCK
CHIP CONVEYOR
