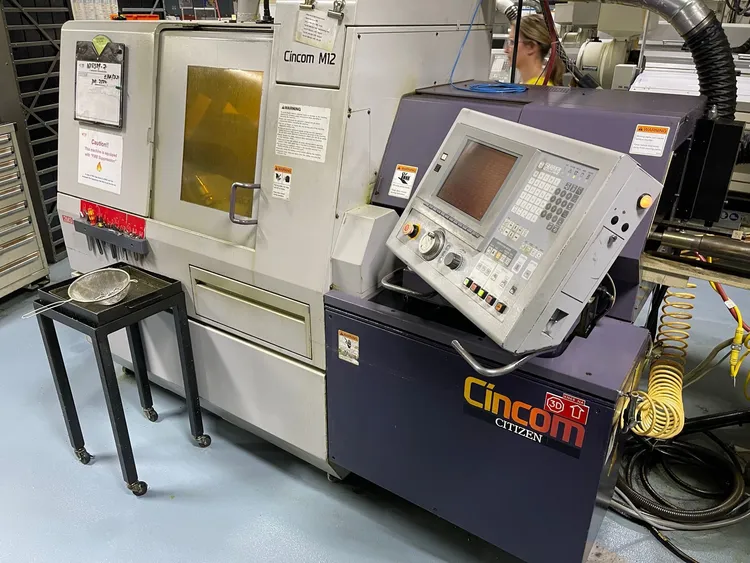

CITIZEN M-12 (2M3) CNC SWISS SCREW MACHINE
Swiss Type Automatic Screw Machines
| Spindle Hole Dia | 0.5" |
CITIZEN M-12 (2M3) CNC SWISS SCREW MACHINE
NEW: 1999
General Specifications:
CNC Control: Mitsubishi (M6M)
Machining Diameter: 1/2"
Machining Length per Chucking: 7 3/4" (200mm)
Drilling Diameter: 6mm Maximum Threading
Diameter (tap & die): M6
Main Spindle Speed: 200 - 12000 rpm
Main Spindle Indexing: Full C-Axis
Rotary Spindle on Gang Tool Post:
Drilling Diameter: 5mm (Tapping M4)
Spindle Speed: 200 - 8000 rpm
Rotary Spindle on Tool Turret Head:
Drilling Diameter: 5mm
Threading Diameter: M5
Spindle Speed: 200 - 6500 rpm
Backwork:
Chucking Diameter of Backwork Spindle: 1/2"
Backwork Length: 125mm
Drilling Diameter: 5mm
Threading Diameter: M5
Backwork Spindle Speed: 250 - 6000 rpm
Spindle Indexing: Full C-Axis
Number of Installable Tools:
Gang Tooling: 5 Turning, 3 Rotary
Turret Tooling: 10 Tools
Number of Turret Indexes: 10 sets (20 sets avail.)
Back Work Tool Post: 3
Tool Sizes:
Gang Tooling: 10mm x 10mm x 120mm
Turret Tooling: 10mm x 10mm x 60mm
Sleeve Size: 19.05mm diameter
Motors:
Main Spindle Drive: 1.5/2.2kw
Power Supply: 6 kva
Dimensions (approx.): 97" x 49" x 68"h
Weight (approx.): 4840 lbs.
Machine: 96" x 45" x 89" 5,000 lbs
Equipped With:
Cincom CNC Control
Iemca Mini Boss 325 Magazine Bar Feed
